A9071119 | OKW

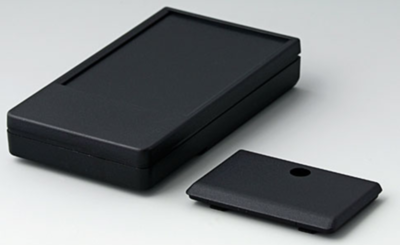

ABS Pocket enclosure, (L x W x H) 105 x 58 x 18.5 mm, black (RAL 9005), IP54, A9071119
Order No.: 30H1348
EAN: 4099889509106
MPN:
A9071119
DATEC-POCKET-BOX M, mit Dichtung
Series: DATEC-POCKET-BOX
Unit Price (€ / pc.)
21.5033 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
21.50 € *
Price list
Quantity
Price per unit*
1 pcs.
21.5033 €
10 pcs.
20.2181 €
50 pcs.
19.4208 €
*incl. VAT plus shipping costs
Subject to prior sale
Pocket box, A9071119, OKW
Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 2 x 1.5 V micro cells (AAA).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| RAL number | 9005 | |
| Length | 105 mm | |
| Height | 18.5 mm | |
| Colour | black | |
| Material | ABS | |
| Width | 58 mm | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
