A9061019 | OKW

ABS enclosure, (L x W x H) 180 x 100 x 44 mm, black (RAL 9005), A9061019

Order No.: 50H626
EAN: 4099889515978
MPN:
A9061019
UNI-MESS-BOX N, Ausf. I
Series: MESS-BOXEN
A9061019 OKW General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
27.4057 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
27.41 € *
Price list
Quantity
Price per unit*
1 pcs.
27.4057 €
5 pcs.
25.7635 €
15 pcs.
24.7877 €
50 pcs.
23.6810 €
150 pcs.
22.6933 €
*incl. VAT plus shipping costs
Subject to prior sale

ABS enclosure, A9061019, OKW

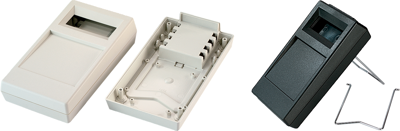

Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Battery compartment accessible from the outside with locked battery compartment lid. For 2 x 9 V flat batteries (PP3) or 4 x 1.5 V mignon cells (AA). Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Technical specifications
Colour black
Width 100 mm
Height 44 mm
Length 180 mm
Material ABS
RAL number 9005
Logistics
Country of origin DE
Customs tariff number 39269097
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
