A9060007 | OKW

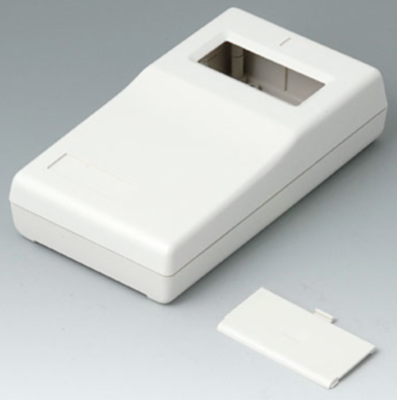

ABS enclosure, (L x W x H) 145 x 80 x 36.5 mm, gray white (RAL 9002), A9060007
Unit Price (€ / pc.)
17.0051 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
17.01 € *
Price list
Quantity
Price per unit*
1 pcs.
17.0051 €
10 pcs.
15.9817 €
50 pcs.
15.3391 €
*incl. VAT plus shipping costs
Subject to prior sale
Enclosure, A9060007, OKW

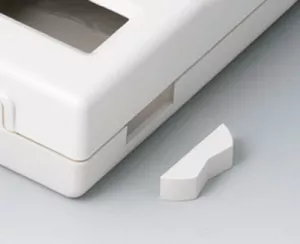

Design: Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| RAL number | 9002 | |
| Length | 145 mm | |
| Height | 36.5 mm | |
| Colour | gray white | |
| Material | ABS | |
| Width | 80 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
