A9022465 | OKW
ABS/PC enclosure, (L x W x H) 120 x 65 x 55 mm, gray white/pebble gray (RAL 9002), IP40, A9022465
Order No.: 70H2421
EAN: 4099889544978
MPN:
A9022465
STECKERGEHÄUSE D, Ausf. II
Series: STECKERGEHÄUSE
Unit Price (€ / pc.)
35.2478 € *
Available: 1 pcs.
Total Price:
35.25 € *
Price list
Quantity
Price per unit*
1 pcs.
35.2478 €
5 pcs.
33.1415 €
15 pcs.
31.8682 €
50 pcs.
30.4640 €
150 pcs.
29.1907 €
*incl. VAT plus shipping costs
Subject to prior sale

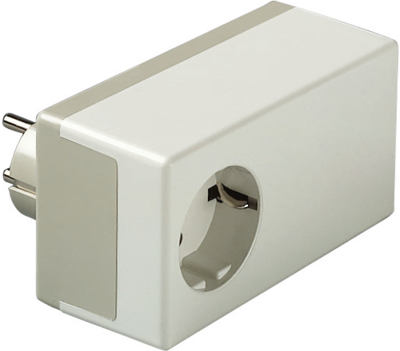

ABS/PC enclosure, A9022465, OKW
Two-part plug case, German version. Fixing towers for the PCB assembly. With integrated socket DIN 49440 and plug section DIN 49441 R2.

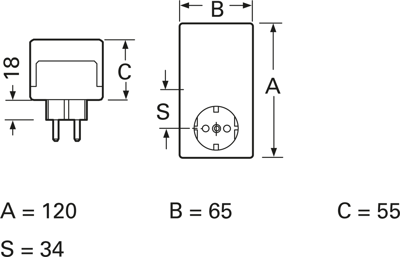

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | ABS/PC | |
| RAL number | 9002 | |
| Length | 120 mm | |
| Height | 55 mm | |
| Width | 65 mm | |
| Degree of protection (IP) | IP40 | |
| Colour | gray white/pebble gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
