A9006207 | OKW
ABS/PC enclosure, (L x W x H) 172 x 92 x 39 mm, gray white (RAL 9002), IP65, A9006207
Order No.: 30H1245
EAN: 4099889508079
MPN:
A9006207
DATEC-COMPACT M, IP65 mit Batteriefach
Series: DATEC-COMPACT
Unit Price (€ / pc.)
54.1807 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
54.18 € *
Price list
Quantity
Price per unit*
1 pcs.
54.1807 €
10 pcs.
50.9320 €
50 pcs.
48.8733 €
*incl. VAT plus shipping costs
Subject to prior sale

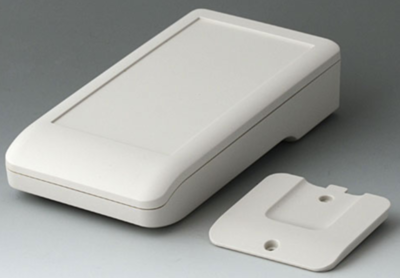

Hand housing, A9006207, OKW
3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 39 mm | |
| Colour | gray white | |
| Degree of protection (IP) | IP65 | |
| Material | ABS/PC | |
| Width | 92 mm | |
| RAL number | 9002 | |
| Length | 172 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
