A9005108 | OKW
ABS/PC enclosure, (L x W x H) 136 x 74 x 32 mm, lava, IP65, A9005108
Order No.: 30H1230
EAN: 4099889507928
MPN:
A9005108
DATEC-COMPACT S, IP65, ohne Batteriefach
Series: DATEC-COMPACT
Unit Price (€ / pc.)
34.2125 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
34.21 € *
Price list
Quantity
Price per unit*
1 pcs.
34.2125 €
10 pcs.
32.1538 €
50 pcs.
30.8686 €
*incl. VAT plus shipping costs
Subject to prior sale

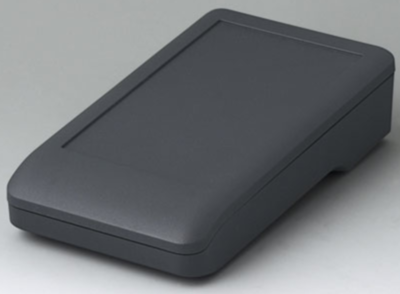

Hand housing, A9005108, OKW
2-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
Technical specifications
| Colour | lava | |
| Degree of protection (IP) | IP65 | |
| Width | 74 mm | |
| Height | 32 mm | |
| Length | 136 mm | |
| Material | ABS/PC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
