A3023639 | OKW
Rotary knob, 6.35 mm, plastic, black, Ø 23 mm, H 16 mm, A3023639
Unit Price (€ / pc.)
4.3197 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
43.20 € *
Price list
Quantity
Price per unit*
10 pcs.
4.3197 €
50 pcs.
4.0460 €
100 pcs.
3.8913 €
500 pcs.
3.7485 €
*incl. VAT plus shipping costs
**Subject to prior sale

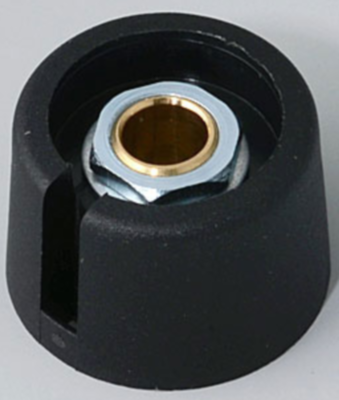

Rotary knob, A3023639, OKW
The A3023639 rotary knob is suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole = 1/4", without chamfer. Max. torque: assembly = 1.2 Nm, function = 1.0 Nm.
Technical specifications
| Version | Drehknopf | |
| For shaft diameter | 6.35 mm | |
| diameter | 23 mm | |
| Height | 16 mm | |
| Marking | No | |
| Type of mounting | Spannzangenbefestigung | |
| Material | Kunststoff | |
| Colour | schwarz |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84879090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
