A3023638 | OKW

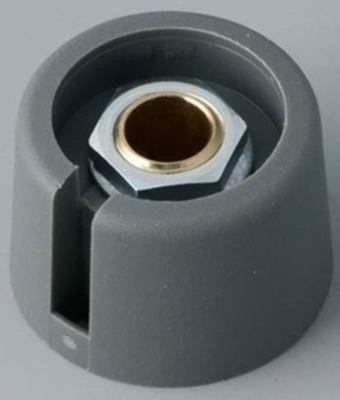

Rotary knob, 6.35 mm, plastic, gray, Ø 23 mm, H 16 mm, A3023638
Order No.: 30H1133
EAN: 4099889346169
MPN:
A3023638
COM-KNOBS 23, vulkan, 1/4 Zoll
Series: COM-KNOBS
Unit Price (€ / pc.)
4.3197 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
43.20 € *
Price list
Quantity
Price per unit*
10 pcs.
4.3197 €
50 pcs.
4.0460 €
100 pcs.
3.8913 €
500 pcs.
3.7485 €
*incl. VAT plus shipping costs
**Subject to prior sale
Rotary knob, A3023638, OKW
The A3023638 rotary knob is suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole = 1/4", without chamfer. Max. torque: assembly = 1.2 Nm, function = 1.0 Nm.
Technical specifications
| Version | Drehknopf | |
| For shaft diameter | 6.35 mm | |
| diameter | 23 mm | |
| Height | 16 mm | |
| Marking | No | |
| Type of mounting | Spannzangenbefestigung | |
| Material | Kunststoff | |
| Colour | grau |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84879090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
