A2440068 | OKW

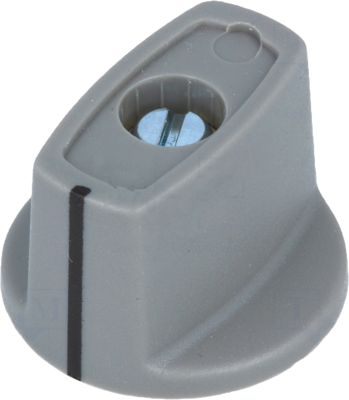

Toggle knob, 6 mm, plastic, gray, Ø 40 mm, H 16 mm, A2440068
Order No.: 29H710
EAN: 4099889346862
MPN:
A2440068
KNEBELKNOPF 40, mit Strich, 6 mm
Series: KOMBIKNÖPFE
Unit Price (€ / pc.)
4.0936 € *
Standard delivery time from the manufacturer is: 2 Weeks
Toggle knob, A2440068, OKW
The A2440068 toggle knob is suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment. Center hole with chamfer. Black marking.

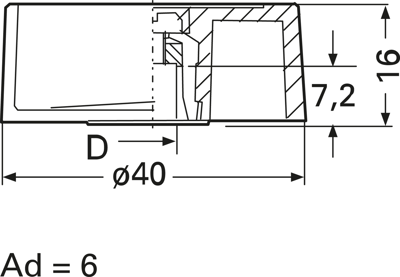

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | toggle knob | |
| For shaft diameter | 6 mm | |
| diameter | 40 mm | |
| Height | 16 mm | |
| Marking | Yes | |
| Type of mounting | collet mounting | |
| Material | plastic | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84879090 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
