A2316040 | OKW

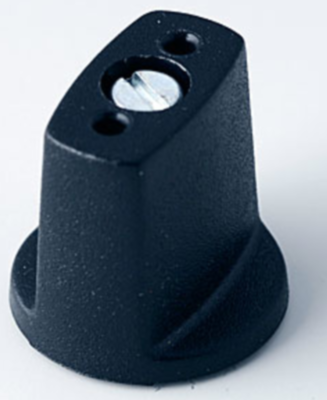

Toggle knob, 4 mm, plastic, black, Ø 16 mm, H 16 mm, A2316040
Order No.: 30H1115
EAN: 4099889346923
MPN:
A2316040
KNEBELKNOPF 16, ohne Strich, 4 mm
Series: KOMBIKNÖPFE
Unit Price (€ / pc.)
4.1650 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
41.65 € *
Price list
Quantity
Price per unit*
10 pcs.
4.1650 €
50 pcs.
3.9032 €
100 pcs.
3.7604 €
500 pcs.
3.6176 €
*incl. VAT plus shipping costs
**Subject to prior sale
Toggle knob, A2316040, OKW
The A2316040 toggle knob is suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.
Technical specifications
| Version | Knebelknopf | |
| For shaft diameter | 4 mm | |
| diameter | 16 mm | |
| Height | 16 mm | |
| Marking | No | |
| Type of mounting | Schraubbefestigung | |
| Material | Kunststoff | |
| Colour | schwarz |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84879090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
