A1031069 | OKW

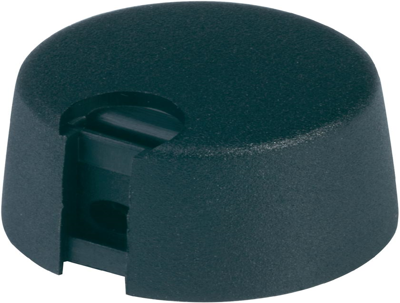

Rotary knob, 6 mm, plastic, black, Ø 31 mm, H 16 mm, A1031069
Unit Price (€ / pc.)
4.3792 € *
Available: 40 pcs.
Leadtime: 3 Weeks **
Total Price:
4.38 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3792 €
10 pcs.
3.8437 €
100 pcs.
3.3796 €
250 pcs.
3.2487 €
1000 pcs.
3.0226 €
*incl. VAT plus shipping costs
**Subject to prior sale
Rotary knob, A1031069, OKW
The A1031069 rotary knob is suitable for rotary potentiometer with round shaft ends according to DIN 41591. Lateral screw fixing by hex-socket set screw (1.5 mm) and cup point. Max. tightening torque: 60 Ncm.
Technical specifications
| Version | rotary knob | |
| For shaft diameter | 6 mm | |
| diameter | 31 mm | |
| Height | 16 mm | |
| Marking | No | |
| Type of mounting | collet mounting | |
| Material | plastic | |
| Colour | black |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84879090 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
