B4146597 | OKW
Installation assembly kit, ABS, (L x W) 325 x 251 mm, gray white, B4146597
Order No.: 30H2145
EAN: 4099889557534
MPN:
B4146597
Einbau-Montage-Set, hoch IFT L
Series: INTERFACE-TERMINAL
Unit Price (€ / pc.)
31.3089 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
31.31 € *
Price list
Quantity
Price per unit*
1 pcs.
31.3089 €
10 pcs.
29.4525 €
50 pcs.
28.2744 €
*incl. VAT plus shipping costs
Subject to prior sale

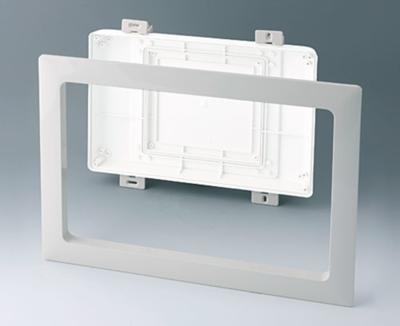

Installation mounting set, B4146597, OKW
Installation mounting set for the installation of the INTERFACE-TERMINAL enclosure in walls, in front panels, machines or systems. Can only be used in conjunction with bottom panel or open rear side of enclosure. Easy installation: Mount holders on the fully assembled enclosure. Place the enclosure with holders in the wall/front panel and align it. Mark and drill mounting holes. Then bolt the enclosure with the holders from the front and push on the design frame.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | ABS | |
| Length | 325 mm | |
| Product type | installation assembly kit | |
| Width | 251 mm | |
| Colour | gray white |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
