B4142587 | OKW
Installation assembly kit, ABS, (W x H) 234 x 185 mm, white, B4142587
Order No.: 30H2121
EAN: 4099889557299
MPN:
B4142587
Einbau-Montage-Set, flach IFT S
Series: INTERFACE-TERMINAL
Unit Price (€ / pc.)
23.0146 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
23.01 € *
Price list
Quantity
Price per unit*
1 pcs.
23.0146 €
10 pcs.
21.6223 €
50 pcs.
20.7774 €
*incl. VAT plus shipping costs
Subject to prior sale

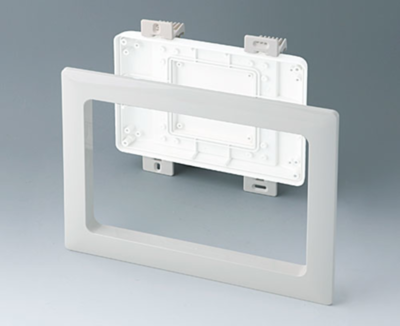

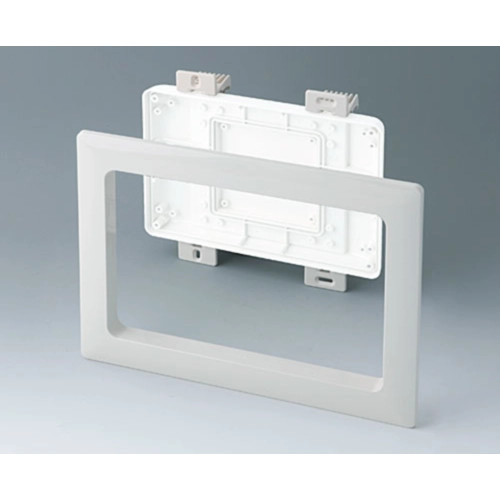

Installation mounting set, B4142587, OKW
Installation mounting set for the installation of the INTERFACE-TERMINAL enclosure in walls, in front panels, machines or systems. Can only be used in conjunction with bottom panel or open rear side of enclosure. Easy installation: Mount holders on the fully assembled enclosure. Place the enclosure with holders in the wall/front panel and align it. Mark and drill mounting holes. Then bolt the enclosure with the holders from the front and push on the design frame.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | ABS | |
| Product type | installation assembly kit | |
| Height | 185 mm | |
| Width | 234 mm | |
| Colour | white |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
