B4042707 | OKW
Housing lower part, ABS, (W x H x D) 190 x 24.5 x 135 mm, gray white, B4042707
Order No.: 30H2045
EAN: 4099889556797
MPN:
B4042707
Unterteil flach, Ausf. I, IFT S
Series: INTERFACE-TERMINAL
Unit Price (€ / pc.)
9.0797 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
9.08 € *
Price list
Quantity
Price per unit*
1 pcs.
9.0797 €
10 pcs.
8.5561 €
50 pcs.
8.2110 €
100 pcs.
7.8659 €
*incl. VAT plus shipping costs
Subject to prior sale

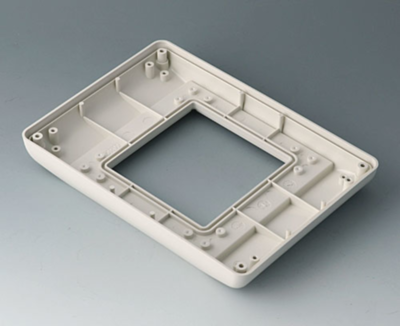

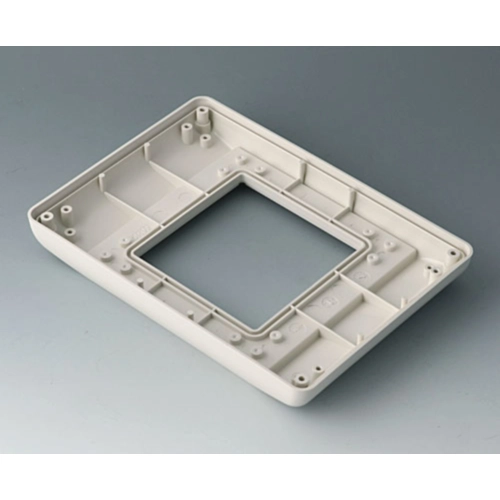

Bottom part, B4042707, OKW
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 135 mm | |
| Material | ABS | |
| Product type | housing lower part | |
| Height | 24.5 mm | |
| Width | 190 mm | |
| Colour | gray white |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
