A9336117 | OKW
Battery compartment kit, 3 x AA, ABS, (L x W) 93 x 69 mm, white, for mignon cells, A9336117
Order No.: 30H1711
EAN: 4099889555684
MPN:
A9336117
Batteriefach, 3 x AA
Unit Price (€ / pc.)
23.6096 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
23.61 € *
Price list
Quantity
Price per unit*
1 pcs.
23.6096 €
10 pcs.
22.1935 €
50 pcs.
21.3010 €
*incl. VAT plus shipping costs
Subject to prior sale

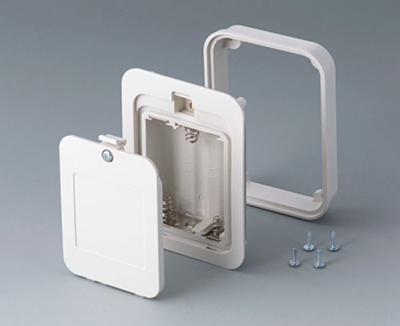

Battery compartment kit, A9336117, OKW
Battery compartment kit for direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting. Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Technical specifications
| Colour | white | |
| Width | 69 mm | |
| Length | 93 mm | |
| Product type | battery compartment kit | |
| Version | 3 x AA | |
| Material | ABS | |
| Suitable for | mignon cells |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
