9-1419125-2 | OEG
Relay, 1 Form A (N/O), 9 V (DC), 324 Ω, 10 A, 30 V (DC), monostable, 9-1419125-2
Order No.: 72P2156
EAN: 4099891597948
MPN:
9-1419125-2
Unit Price (€ / pc.)
1.4042 € *
Available in 5 Days: 572 pcs. - if ordered today
Total Price:
210.63 € *
Price list
Quantity
Price per unit*
150 pcs.
1.4042 €
350 pcs.
1.3923 €
*incl. VAT plus shipping costs
Subject to prior sale

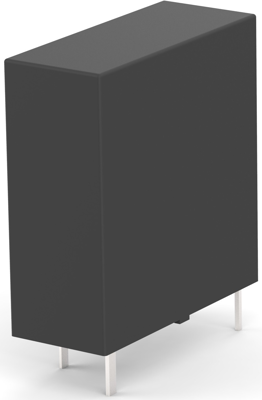

Miniature relay, 9-1419125-2, OEG
Monostable, DC, Standard, 324 Ω Coil resistance, Sensitive version, UL Coil Insulation Class E, 1 Form A (NO), Printed circuit board, Package.
Applications
- Appliances
- HVAC
- Cable TV
- Monitor display
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil resistance | 324 Ω | |
| Switching Voltage (DC) | 30 V | |
| Contact type | 1 Form A (N/O) | |
| Connection | PCB pin | |
| switching current | 10 A | |
| Contact material | Ag alloy | |
| Coil type | monostable | |
| Coil voltage (DC) | 9 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85364110 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
