7-1419128-1 | OEG

Relay, 1 Form A (N/O), 24 V (DC), 2880 Ω, 8 A, 30 V (DC), monostable, 7-1419128-1

Order No.: 72P1044
EAN: 4099891596699
MPN:
7-1419128-1
Series: OJ/OJE

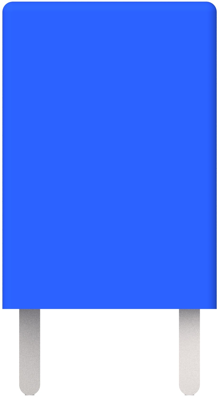

7-1419128-1 OEG Industrial Relays Image 1

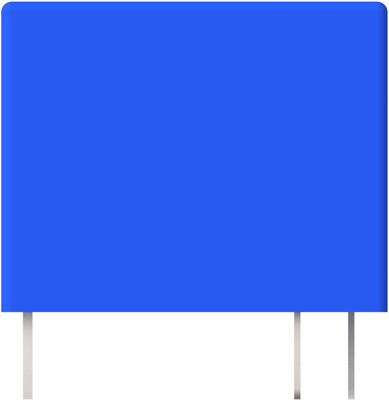

7-1419128-1 OEG Industrial Relays Image 2

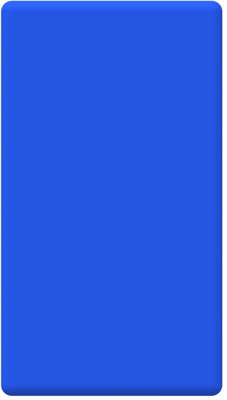

7-1419128-1 OEG Industrial Relays Image 3

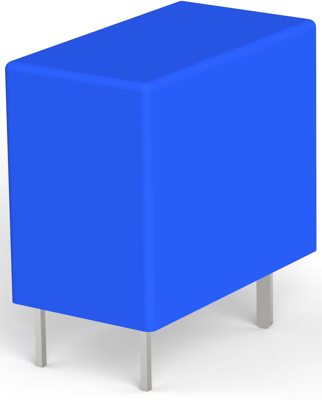

7-1419128-1 OEG Industrial Relays Image 4
Image may differ
Unit Price (€ / pc.)
1.5589 € *
Available in 5 Days: 1,040 pcs. - if ordered today
Total Price:
311.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
200 pcs.
1.5589 €

Miniature PCB relay, 7-1419128-1, OEG

Power relay, Standard, Monostable, DC, 200 mW Coil Power Rating DC, 2880 Ω Coil Resistance.

Features

  • Small size with outline dimension

Applications

  • Major home appliance
  • Small appliances
  • HVAC
  • Industrial control
Technical specifications
Filter Property Value
Coil type monostable
Contact material AgNi 90/10
Connection PCB pin
Coil voltage (DC) 24 V
switching current 8 A
Contact type 1 Form A (N/O)
Switching Voltage (DC) 30 V
Coil resistance 2880 Ω
Logistics
Property Value
Customs tariff number 85364900
Country of origin CN
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Cadmium oxide
