5-1419128-0 | OEG
Relay, 1 Form A (N/O), 12 V (DC), 720 Ω, 8 A, 30 V (DC), monostable, 5-1419128-0
Unit Price (€ / pc.)
1.9635 € *
Available in 5 Days: 26,506 pcs. - if ordered today
Total Price:
392.70 € *
Price list
Quantity
Price per unit*
200 pcs.
1.9635 €
300 pcs.
1.6898 €
*incl. VAT plus shipping costs
Subject to prior sale

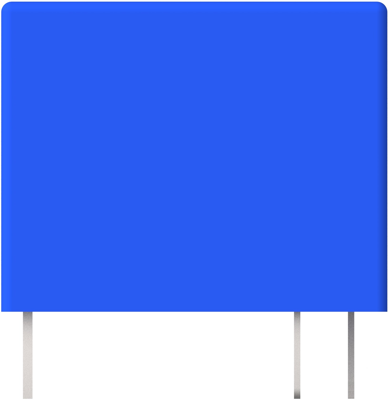

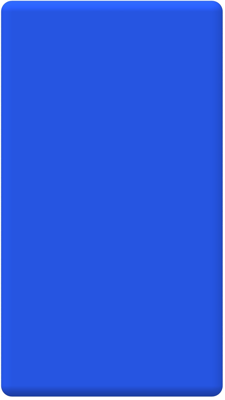

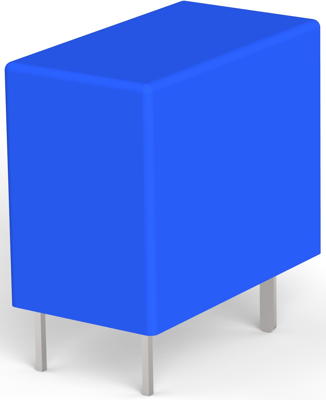

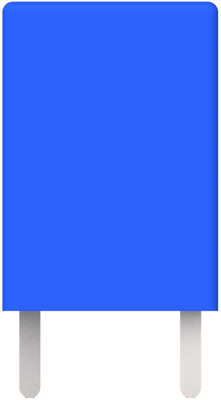

Miniature PCB relay, 5-1419128-0, OEG
Power relay, Standard, Monostable, DC, 200 mW Coil Power Rating DC, 720 Ω Coil Resistance.
Features
- Small size with outline dimension
Applications
- Major home appliance
- Small appliances
- HVAC
- Industrial control
Technical specifications
| Coil type | monostable | |
| switching current | 8 A | |
| Switching Voltage (DC) | 30 V | |
| Coil voltage (DC) | 12 V | |
| Connection | PCB pin | |
| Contact type | 1 Form A (N/O) | |
| Contact material | AgSnO2 + W | |
| Coil resistance | 720 Ω |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85364900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Cadmium oxide |
| SVHC free | No |
| RoHS conform | Yes |
