4-1440000-1 | OEG

Name: Relay, 1 Form A (N/O), 12 V (DC), 270 Ω, 10 A, 30 V (DC), monostable, 4-1440000-1
Brand: OEG
SKU: 71P8569
Availability: OutOfStock

Relay, 1 Form A (N/O), 12 V (DC), 270 Ω, 10 A, 30 V (DC), monostable, 4-1440000-1

Order No.: 71P8569

EAN: 4099891594770

MPN:

4-1440000-1

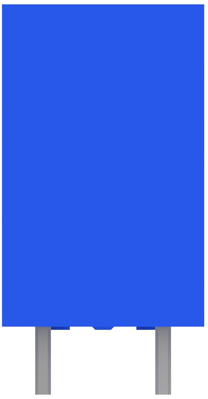

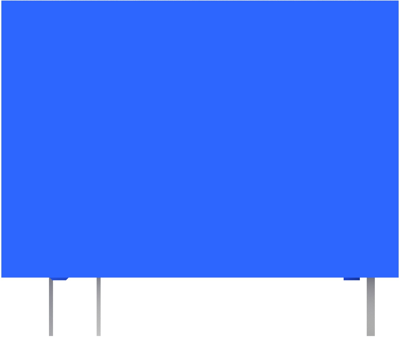

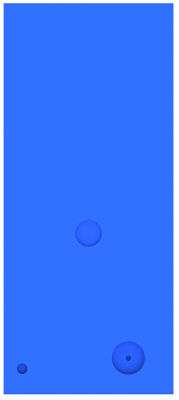

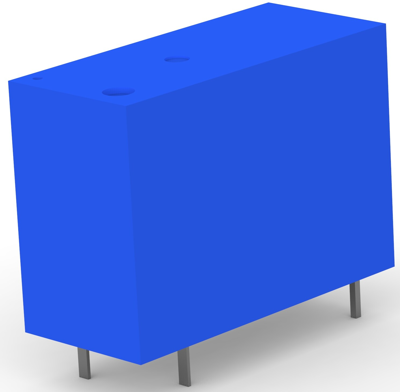

4-1440000-1 OEG Industrial Relays Image 3

4-1440000-1 OEG Industrial Relays Image 4

Image may differ

Key Specification:

Contact type 1 Form A (N/O)

switching current 10 A

Coil voltage (DC) 12 V

Coil resistance 270 Ω

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.9873 € *

Available in 5 Days: 840 pcs. - if ordered today

Total Price:

198.73 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Power relay, 4-1440000-1, OEG

Monostable, DC, Standard, 270 Coil resistance, 1 Form A (SPST-NO), Sensitive version, UL Coil insulation Class A, Printed circuit board, Tube.

Technical specifications

	Coil type	monostable
	switching current	10 A
	Switching Voltage (DC)	30 V
	Coil voltage (DC)	12 V
	Connection	PCB pin
	Contact type	1 Form A (N/O)
	Contact material	AgNi 90/10
	Coil resistance	270 Ω
