3-1440002-6 | OEG

Relay, 1 Form A (N/O), 12 V (DC), 270 Ω, 16 A, 24 V (DC), monostable, 3-1440002-6

Order No.: 71P7429
EAN: 4099891593735
MPN:
3-1440002-6
3-1440002-6 OEG Industrial Relays Image 1

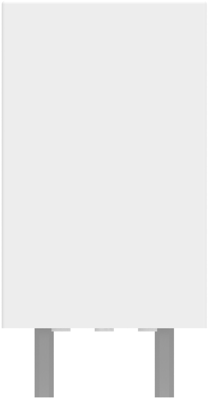

3-1440002-6 OEG Industrial Relays Image 2

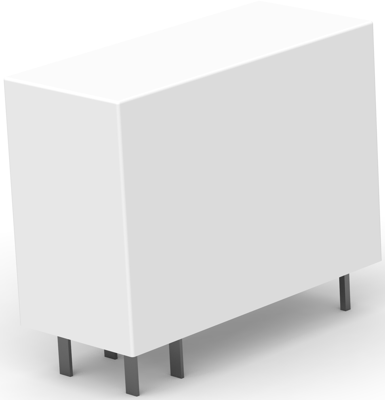

3-1440002-6 OEG Industrial Relays Image 3

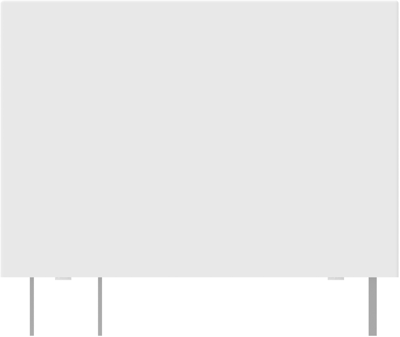

3-1440002-6 OEG Industrial Relays Image 4
Image may differ
Unit Price (€ / pc.)
2.7727 € *
Available in 5 Days: 740 pcs. - if ordered today
Total Price:
207.95 € *
Price list
Quantity
Price per unit*
75 pcs.
2.7727 €
200 pcs.
2.7132 €
*incl. VAT plus shipping costs
Subject to prior sale

Power relay, 3-1440002-6, OEG

Monostable, DC, Standard, 270 Coil resistance, 1 Form A (NO), UL Coil insulation Class A, Printed circuit board, Box & Carton.

Applications

  • Home appliances
  • Office machines
Technical specifications
Coil type monostable
switching current 16 A
Switching Voltage (DC) 24 V
Coil voltage (DC) 12 V
Connection PCB pin
Contact type 1 Form A (N/O)
Contact material AgSnO2
Coil resistance 270 Ω
Logistics
Country of origin CN
Customs tariff number 85364900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
