2-1419129-9 | OEG

Relay, 1 Form A (N/O), 24 V (DC), 1280 Ω, 5 A, 30 V (DC), 277 V (AC), monostable, 2-1419129-9

Order No.: 71P4870
EAN: 4099891592653
MPN:
2-1419129-9
Series: OJ/OJE

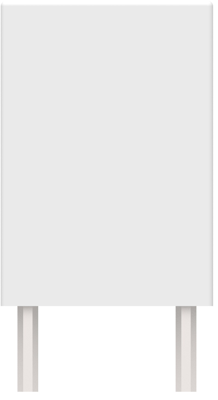

2-1419129-9 OEG Industrial Relays Image 1

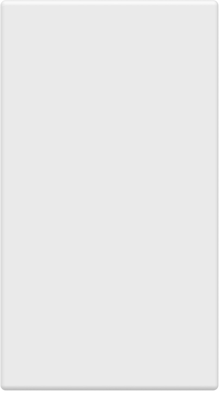

2-1419129-9 OEG Industrial Relays Image 2

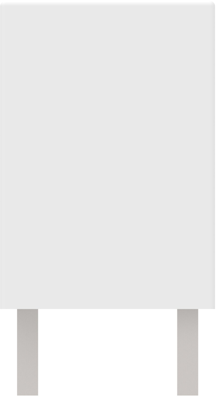

2-1419129-9 OEG Industrial Relays Image 3

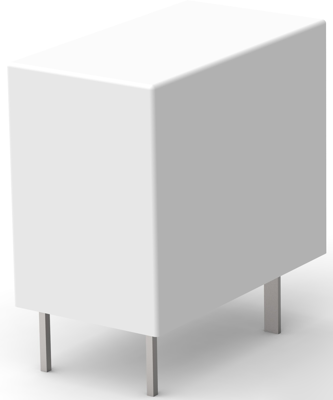

2-1419129-9 OEG Industrial Relays Image 4

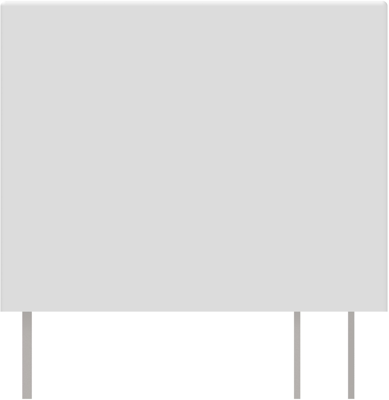

2-1419129-9 OEG Industrial Relays Image 5
Image may differ
Unit Price (€ / pc.)
1.3328 € *
Available in 5 Days: 84,880 pcs. - if ordered today
Total Price:
266.56 € *
Price list
Quantity
Price per unit*
200 pcs.
1.3328 €
400 pcs.
1.2852 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature PCB relay, 2-1419129-9, OEG

Power relay, Standard, Monostable, DC, 450 mW Coil Power Rating DC, 1280 Ω Coil Resistance.

Features

  • Small size with outline dimension
  • 4000V rms coil contact di-electric strength

Applications

  • Major home appliance
  • Small appliances
  • HVAC
  • Industrial Control
Technical specifications
Switching Voltage (AC) 277 V
Coil type monostable
switching current 5 A
Switching Voltage (DC) 30 V
Coil voltage (DC) 24 V
Connection PCB pin
Contact type 1 Form A (N/O)
Contact material AgNi
Coil resistance 1280 Ω
Logistics
Country of origin CN
Customs tariff number 85364900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
