1649341-6 | OEG
Relay, 1 Form A (N/O), 240 V (AC), 11500 Ω, 30 A, 277 V (AC), monostable, 1649341-6
Unit Price (€ / pc.)
9.8413 € *
Available in 5 Days: 239 pcs. - if ordered today
Total Price:
246.03 € *
Price list
Quantity
Price per unit*
25 pcs.
9.8413 €
55 pcs.
9.6747 €
*incl. VAT plus shipping costs
Subject to prior sale

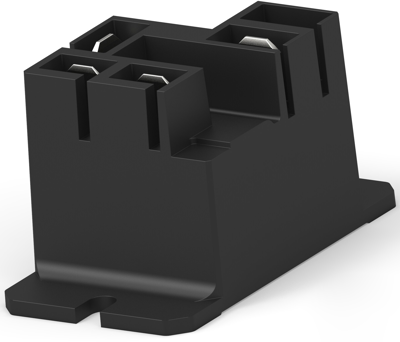

Power relay, 1649341-6, OEG
Power relay, Standard, Monostable, AC, 1600 VA Coil Power Rating AC, 11500 Ω Coil Resistance, UL Coil Insulation Class F.
Features
- Dust protected
- 30A switching in 1 form A
- Flanged mounting
Applications
- Power supplies
- Domestic appliances
- Measurement and controls
- HVAC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | faston plug | |
| Contact material | AgCdO | |
| switching current | 30 A | |
| Coil voltage (AC) | 240 V | |
| Coil resistance | 11500 Ω | |
| Switching Voltage (AC) | 277 V | |
| Coil type | monostable | |
| Contact type | 1 Form A (N/O) |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Cadmium oxide |
| Date of RoHS guidelines | 3/31/15 |
