1461403-3 | OEG

Relay, 1 Form A (N/O), 5 V (DC), 125 Ω, 8 A, 30 V (DC), monostable, 1461403-3

Order No.: 71P2189
EAN: 4099891590741
MPN:
1461403-3
Series: OJ/OJE

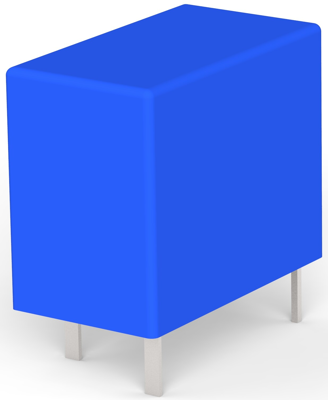

1461403-3 OEG Industrial Relays Image 1

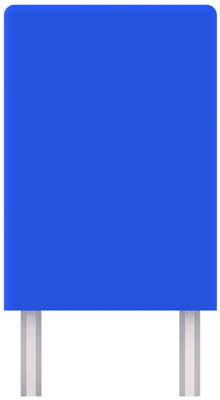

1461403-3 OEG Industrial Relays Image 2

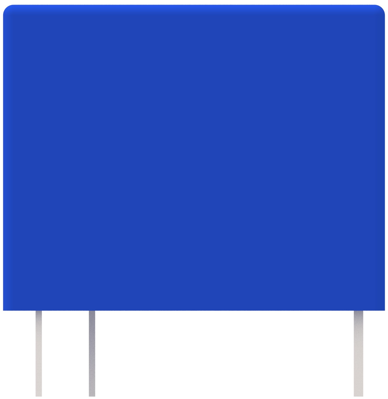

1461403-3 OEG Industrial Relays Image 3
1461403-3 OEG Industrial Relays Image 4
1461403-3 OEG Industrial Relays Image 5
Image may differ
Unit Price (€ / pc.)
1.3328 € *
Available in 5 Days: 53,187 pcs. - if ordered today
Total Price:
199.92 € *
Price list
Quantity
Price per unit*
150 pcs.
1.3328 €
400 pcs.
1.2852 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature PCB relay, 1461403-3, OEG

Power relay, Standard, Monostable, DC, 200 mW Coil Power Rating DC, 125 Ω Coil Resistance, UL Coil Insulation Class E.

Features

  • Small size with outline dimension

Applications

  • Major home appliance
  • Small appliances
  • HVAC
  • Industrial control
Technical specifications
Coil type monostable
switching current 8 A
Switching Voltage (DC) 30 V
Coil voltage (DC) 5 V
Connection PCB pin
Contact type 1 Form A (N/O)
Contact material AgCdO
Coil resistance 125 Ω
Logistics
Country of origin CN
Customs tariff number 85364900
Compliance
Date of RoHS guidelines 3/31/15
Substance description Cadmium oxide
SVHC free No
RoHS conform Yes
