1461401-5 | OEG

Relay, 1 Form A (N/O), 12 V (DC), 720 Ω, 3 A, 30 V (DC), monostable, 1461401-5

Order No.: 71P2187
EAN: 4099891590727
MPN:
1461401-5
Series: OJ/OJE

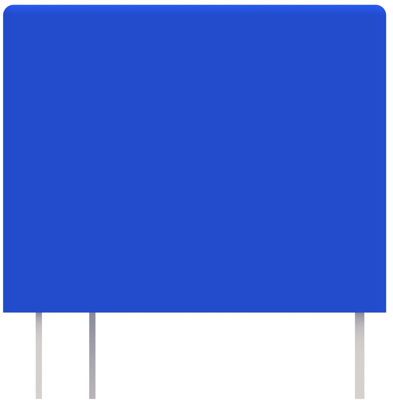

1461401-5 OEG Industrial Relays Image 1

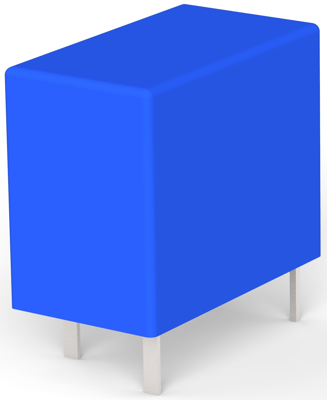

1461401-5 OEG Industrial Relays Image 2

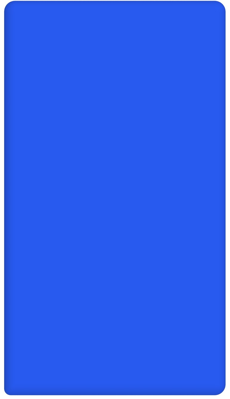

1461401-5 OEG Industrial Relays Image 3

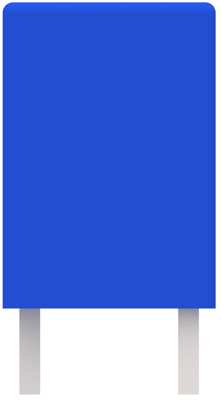

1461401-5 OEG Industrial Relays Image 4
1461401-5 OEG Industrial Relays Image 5
Image may differ
Unit Price (€ / pc.)
1.1900 € *
Available in 5 Days: 88,313 pcs. - if ordered today
Total Price:
238.00 € *
Price list
Quantity
Price per unit*
200 pcs.
1.1900 €
500 pcs.
1.1543 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature PCB relay, 1461401-5, OEG

Power relay, Standard, Monostable, DC, 200 mW Coil Power Rating DC, 720 Ω Coil Resistance, UL Coil Insulation Class E.

Features

  • Small size with outline dimension

Applications

  • Major home appliance
  • Small appliances
  • HVAC
  • Industrial control
Technical specifications
Coil type monostable
switching current 3 A
Switching Voltage (DC) 30 V
Coil voltage (DC) 12 V
Connection PCB pin
Contact type 1 Form A (N/O)
Contact material AgNi
Coil resistance 720 Ω
Logistics
Country of origin CN
Customs tariff number 85364110
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
