1419135-3 | OEG

Relay, 1 Form A (N/O), 12 V (DC), 320 Ω, 10 A, 30 V (DC), monostable, 1419135-3

Order No.: 71P2093
EAN: 4099891590529
MPN:
1419135-3
Series: OJ/OJE

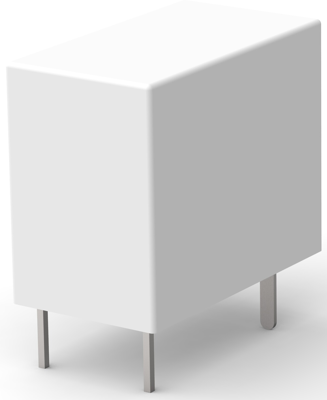

1419135-3 OEG Industrial Relays Image 1

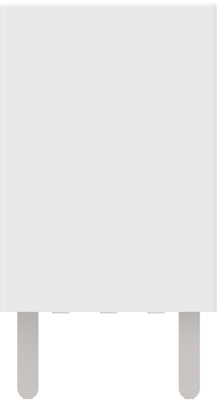

1419135-3 OEG Industrial Relays Image 2

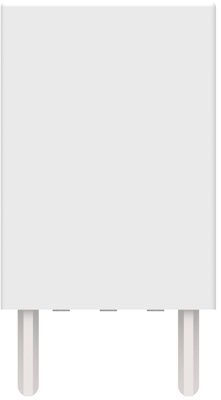

1419135-3 OEG Industrial Relays Image 3

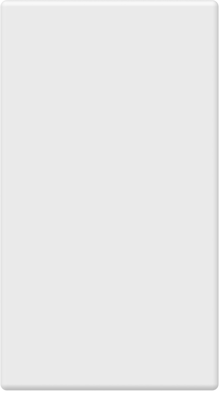

1419135-3 OEG Industrial Relays Image 4

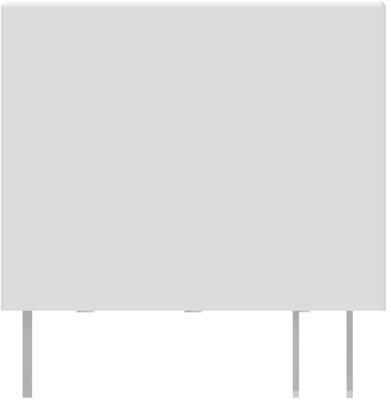

1419135-3 OEG Industrial Relays Image 5
Image may differ
Unit Price (€ / pc.)
1.3328 € *
Available in 5 Days: 839 pcs. - if ordered today
Total Price:
266.56 € *
Price list
Quantity
Price per unit*
200 pcs.
1.3328 €
400 pcs.
1.3090 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature PCB relay, 1419135-3, OEG

Power relay, Standard, Monostable, DC, 450 mW Coil Power Rating DC, 320 Ω Coil Resistance, UL Coil Insulation Class E.

Features

  • Small size with outline dimension
  • 4000V rms coil contact di-electric strength

Applications

  • Major home appliance
  • Small appliances
  • HVAC
  • Industrial Control
Technical specifications
Coil type monostable
switching current 10 A
Switching Voltage (DC) 30 V
Coil voltage (DC) 12 V
Connection PCB pin
Contact type 1 Form A (N/O)
Contact material AgCdO
Coil resistance 320 Ω
Logistics
Country of origin CN
Customs tariff number 85364110
Compliance
Date of RoHS guidelines 3/31/15
Substance description Cadmium oxide
SVHC free No
RoHS conform Yes
