525.060.035.030.010 | ODU

Socket header, 30 pole, pitch 2.54 mm, straight, gray, 525.060.035.030.010

Order No.: 56F6804
EAN: 4099891001834
MPN:
525.060.035.030.010
Series: MINI-FLAK

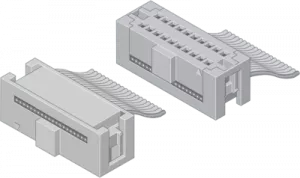

525.060.035.030.010 ODU PCB Connection Systems Image 1

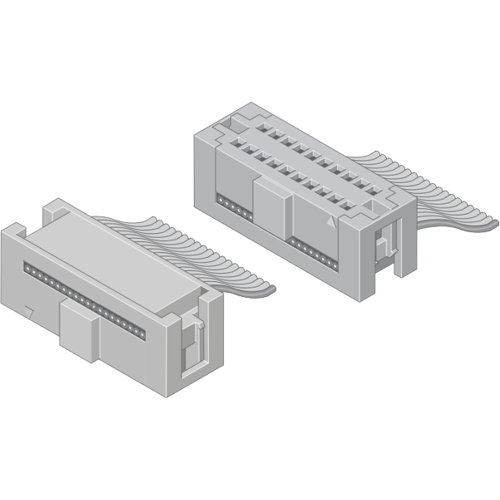

525.060.035.030.010 ODU PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
11.0432 € *
Available: 234 pcs.
Total Price:
11.04 € *
Price list
Quantity
Price per unit*
1 pcs.
11.0432 €
10 pcs.
9.6985 €
50 pcs.
9.0440 €
150 pcs.
8.6513 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable-to-board female connectors for ribbon cables, 1.27 x 2.54 mm grid, series ODU MINI-FLAKAFIX

Dual row, with center polarity nipple.

Operating voltage: 30 V

Rated current (single contact at 25 °C): 0.5 A

Contact resistance: max. 6.0 Mohm

Test voltage: 750 VRMS

Insulator: PBT, GF to UL 94 V-0

Color: gray

Insertion force per contact: 0.18 N

Insertion/removal cycles: at least 100

Contact material: copper alloy

Contact finish: 0.75 µm gold on 1.25 µm nickel primer, MiL-G-45204B Class 00

Operating temperatures: - 40 to +125 °C

Dimension: A 17.78 mm, B 23.58 mm

Number of poles: 30-pole

Type: 525.060.035.030.010

Technical specifications
Filter Property Value
Type of locking Yes
Version socket header
Connection IDC connection
Number of rows 2
Contact type socket
Additional parts equipped
Rated voltage 30 V
Connection plating tin-plated
contact surface gold-plated
Pin number 30 pole
Grid 2.54 mm
Colour gray
Rated current 500 mA
Orientation straight
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
