517.075.003.014.010 | ODU

Socket header, 14 pole, pitch 2.54 mm, straight, gray, 517.075.003.014.010

Order No.: 56F702
EAN: 4099891001902
MPN:
517.075.003.014.010
Series: FLAKAFIX

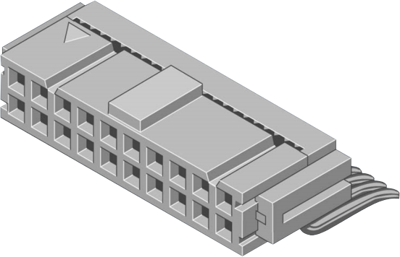

517.075.003.014.010 ODU PCB Connection Systems Image 1
517.075.003.014.010 ODU PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
4.3435 € *
Available: 0 pcs.
Next delivery: 398 pcs. on 2025-06-06
Leadtime: 4 Weeks **
Total Price:
4.34 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3435 €
10 pcs.
3.9865 €
50 pcs.
3.6295 €
100 pcs.
3.2725 €
*incl. VAT plus shipping costs
**Subject to prior sale

Cable-to-board female connectors DIN 41651, series ODU FLAKAFIX, type ODU 517.075.003.

Compliant with DIN EN 60603-13 (DIN 41651). for insertion on 0.64 x 0.64 pin headers with 2.54 mm grid, and for press-fit installation on standard cables with 1.27 mm partition and 0.08 to 0.14 mm² cross-sections; Contact carrier: PBT glass fiber-reinforced. Combustibility to UL 94 V-0. Color: gray. Contacts: copper alloy. Test voltage: 1000 VRMS. Current carrying capacity at conductor cross-sections 0.08 mm² max. 1.0 A, 0.14 mm² max. 1.5 A. Operating temperatures: - 55 °C to +125 °C.

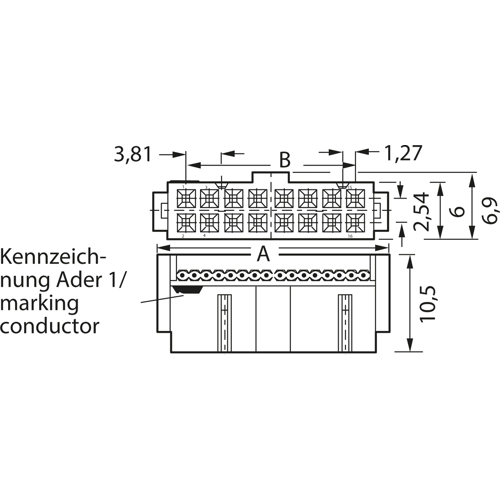

Technical attributes (number of poles, dimensions A/B): 014, 14-pole, A 22.4/B 15.24 mm

Technical specifications
Version socket header
contact surface gold-plated
Connection IDC connection
Contact type socket
Additional parts equipped
Rated current 1.5 A
Pin number 14 pole
Colour gray
Orientation straight
Grid 2.54 mm
Logistics
Country of origin RO
Customs tariff number 85366990
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
