511.030.003.026.000 | ODU

Pin header, 26 pole, pitch 2.54 mm, straight, gray, 511.030.003.026.000

Order No.: 56F728
EAN: 4099891002077
MPN:
511.030.003.026.000
Series: FLAKAFIX
511.030.003.026.000 ODU PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
3.4391 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
3.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.4391 €

Corresponding pin headers for PCB mounting, series ODU FLAKAFIX, type ODU 511.030.003.

Dual-row; Contact block: glass fiber-reinforced PBT. Color: gray. Contacts: copper alloy, gold-plated insertion area. Contact rating: max. 5.0 A. Test voltage: 1000 V RMS. Operating temperatures: –55 to +125 °C. Certifications: UL.

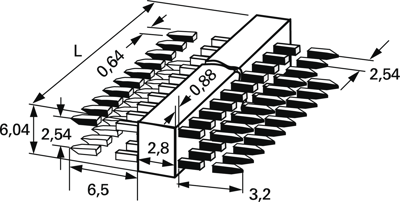

Technical attributes (type, number of poles, grid, dimension L): 026, 26-pole, 32.88 mm

Technical specifications
Colour gray
contact surface gold-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 26 pole
Version pin header
Additional parts equipped
Orientation straight
Connection SMD
Contact type pin
Number of rows 2
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
