2056569 | OBO Bettermann
Lustre terminal, 12 pole, 4-16 mm², clamping points: 12, black, screw connection, 76 A, 2056569
Order No.: 46P1756
EAN: 4012195879435
MPN:
2056569
78 CE SW/EKL 3 S
Unit Price (€ / pc.)
5.4621 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
54.62 € *
Price list
Quantity
Price per unit*
10 pcs.
5.4621 €
50 pcs.
5.1289 €
100 pcs.
4.7719 €
*incl. VAT plus shipping costs
Subject to prior sale

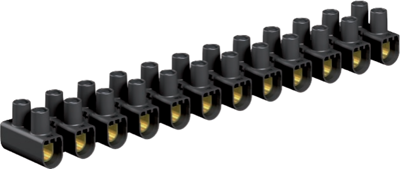

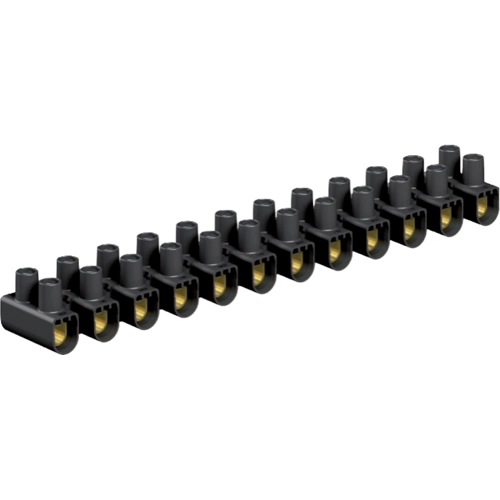

Terminal block, 2056569, OBO Bettermann
Steel terminals, steel screws, electrogalvanised, 12-pole, individual terminals detachable from strips using "twist'n'pull". Captive upwards screw.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Cable cross-section | 4-16 mm² | |
| Version | terminal block | |
| Rated current | 76 A | |
| Pin number | 12 pole | |
| Connection | screw connection | |
| Number of terminals | 12 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
