2011381 | OBO Bettermann

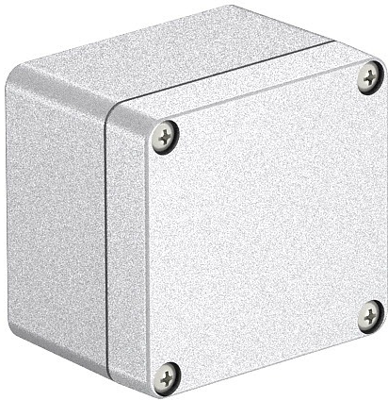

Die-cast aluminum enclosure, (L x W x H) 80 x 75 x 57 mm, silver, IP66, 2011381
Order No.: 46P1909
EAN: 4012196622603
MPN:
2011381
Mx 080705 CR3
Unit Price (€ / pc.)
36.6163 € *
Standard delivery time from the manufacturer is: 6 Weeks
Aluminium empty housing, 2011381, OBO Bettermann
Robust aluminium empty housing for mechanical engineering and automation technology. It is therefore also best suited for applications in industry, ports and ship building, as well as in the agricultural sector. The product withstand both great cold and heat as well as impacts or kicks on roads, railways or in tunnels. With a protection class of up to IP66, it is optimally protected against the intrusion of water. The aluminium is of course UV-resistant and halogen-free. The cover seal is made from polyurethane and the surface provides a good contact when using metal fittings.

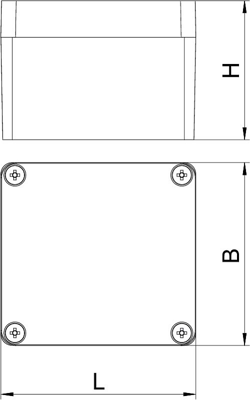

Technical specifications
| Colour | silver | |
| Degree of protection (IP) | IP66 | |
| Width | 75 mm | |
| Height | 57 mm | |
| Length | 80 mm | |
| Material | die-cast aluminum |
Download
Logistics
| Customs tariff number | 85381000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
