2007444 | OBO Bettermann
Cable junction box, 225 x 173 x 86 mm, no. of entries: 16, 25 mm², light gray, IP66, 2007444
Order No.: 46P2019
EAN: 4012195682196
MPN:
2007444
T 250 KL
Unit Price (€ / pc.)
51.7055 € *
Standard delivery time from the manufacturer is: 1 Week

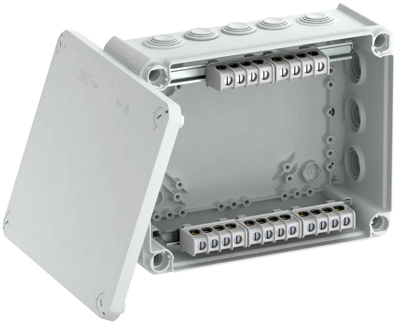

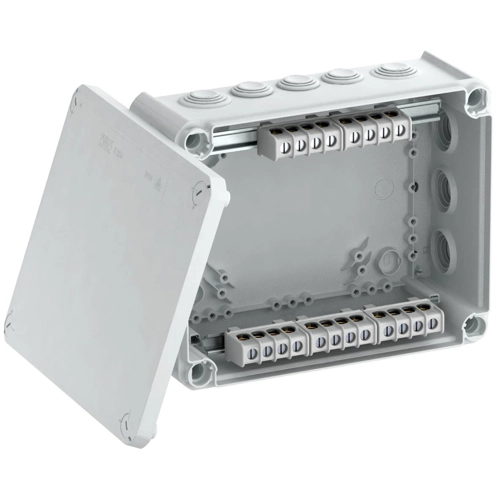

Junction box, 2007444, OBO Bettermann
Junction box with terminal strip for the connection of cables and lines indoors and in protected outdoor areas. Rectangular design with plug-in seals to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting, on mounting panels and threads in the floor. With the option to fasten inside and to mount via the corner domes.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | light gray | |
| Insertions | 16 | |
| Degree of protection (IP) | IP66 | |
| Version | cable junction box | |
| Inner dimensions | 225 x 173 x 86 mm | |
| Cable cross-section | 25 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
