2007077 | OBO Bettermann

Cable junction box, 136 x 102 x 57 mm, no. of entries: 10, 10 mm², gray, IP66, 2007077

Order No.: 46P1997
EAN: 4012195246794
MPN:
2007077
T 100

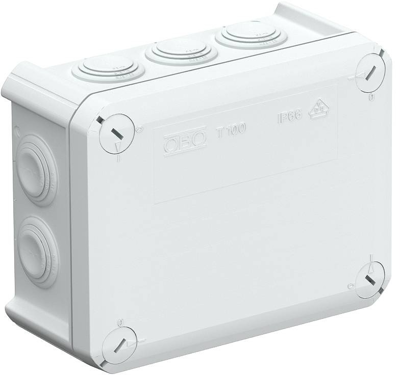

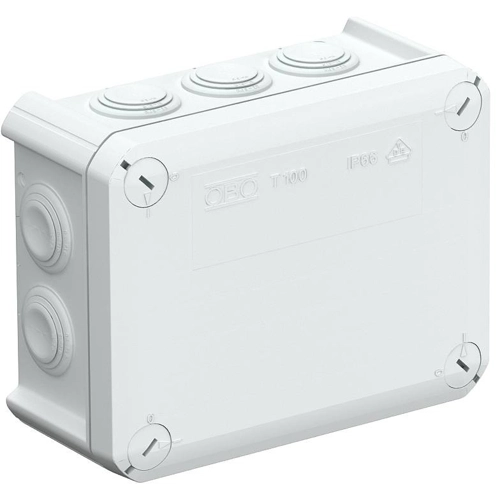

2007077 OBO Bettermann Flush-mounted Boxes, Junction Boxes Image 1

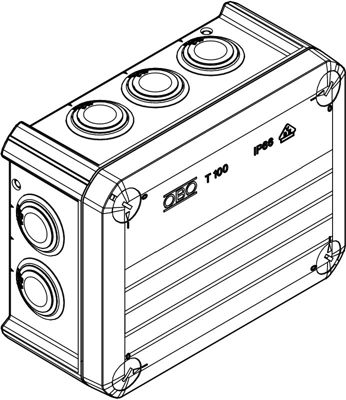

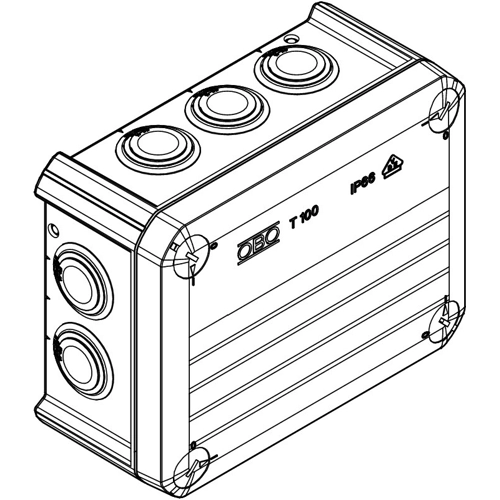

2007077 OBO Bettermann Flush-mounted Boxes, Junction Boxes Image 2

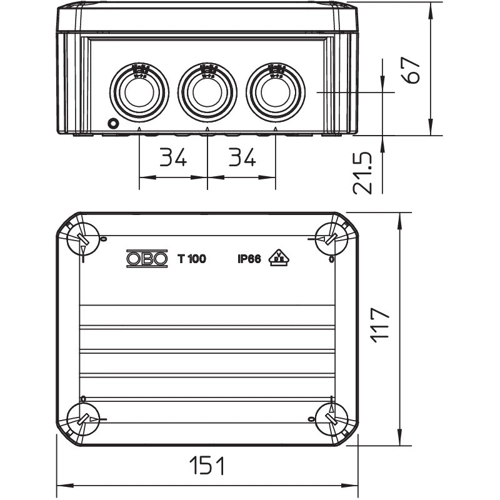

2007077 OBO Bettermann Flush-mounted Boxes, Junction Boxes Image 3
Image may differ
Unit Price (€ / pc.)
15.6723 € *
Available: 2 pcs.
Total Price:
15.67 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6723 €
5 pcs.
14.4347 €
10 pcs.
13.6017 €
25 pcs.
12.7806 €
50 pcs.
11.9595 €
*incl. VAT plus shipping costs
Subject to prior sale

Junction box, 2007077, OBO Bettermann

Junction box for the connection of cables and lines indoors and in protected outdoor areas. Rectangular design with plug-in seals to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting and on mounting panels. With the option to fasten inside and to mount via the corner domes.

Technical specifications
Filter Property Value
Cable cross-section 10 mm²
Inner dimensions 136 x 102 x 57 mm
Degree of protection (IP) IP66
Colour gray
Version cable junction box
Insertions 10
Logistics
Property Value
Customs tariff number 39269097
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
