2003800 | OBO Bettermann
Cavity wall box, 68 x 35 mm, Ø 68 mm, no. of entries: 6, 1.5-2.5 mm², orange, IP30, 2003800
Order No.: 46P2073
EAN: 4012196687060
MPN:
2003800
HG 35
Unit Price (€ / pc.)
4.1531 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
103.83 € *
Price list
Quantity
Price per unit*
25 pcs.
4.1531 €
50 pcs.
3.8080 €
100 pcs.
3.5819 €
500 pcs.
3.3558 €
*incl. VAT plus shipping costs
Subject to prior sale

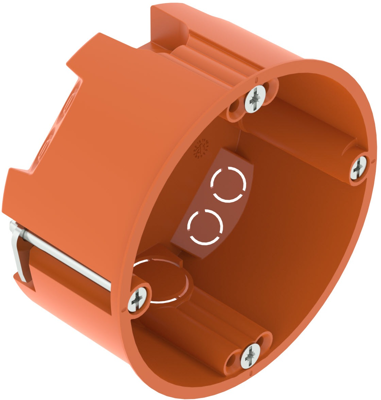

Cavity wall, 2003800, OBO Bettermann
The 2003800 is a cavity wall device box for use in cavity walls with an installation depth of at least 35 mm and a plate thickness of 5-28 mm.

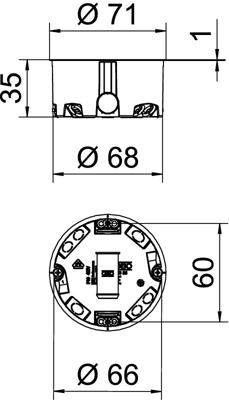

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | cavity wall box | |
| Inner dimensions | 68 x 35 mm | |
| Hole diameter | 68 mm | |
| Insertions | 6 | |
| Cable cross-section | 1.5-2.5 mm² | |
| Colour | orange | |
| Degree of protection (IP) | IP30 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39259080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
