2154066 | OBO Bettermann
Fitting pipe bend, 90°, (L x H) 91 x 28 mm, head Ø 25 mm, PP, white, for M25, 2154066
Order No.: 46P2089
EAN: 4012196869855
MPN:
2154066
3000 BMS M25 RW
Unit Price (€ / pc.)
6.8306 € *
Available: 2 pcs.
Total Price:
6.83 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8306 €
5 pcs.
6.1999 €
10 pcs.
5.7358 €
50 pcs.
5.2717 €
100 pcs.
4.9623 €
*incl. VAT plus shipping costs
Subject to prior sale

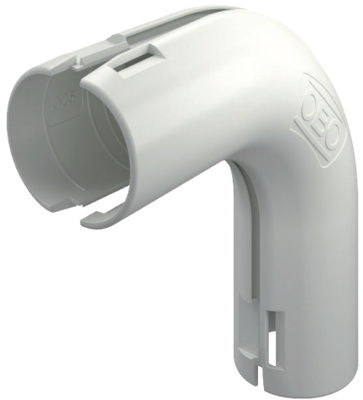

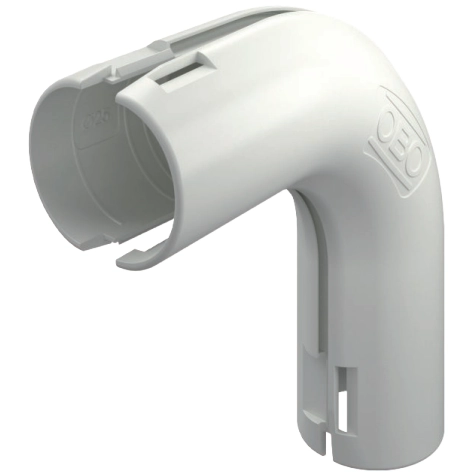

Quick pipe bend, 2154066, OBO Bettermann
The 2154066 is a quick pipe bend fitting for plastic electrical installation pipes to create 90° bends. This product can be used in a temperature range of -25 to +60 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | fitting pipe bend | |
| Version | 90° | |
| Suitable for | M25 | |
| Length | 91 mm | |
| Height | 28 mm | |
| Head Diameter | 25 mm | |
| Colour | white | |
| Material | PP | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 60 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
