2153130 | OBO Bettermann
Pipe clamp, (L x W x H) 43 x 15.5 x 46 mm, mounting Ø 4.1 mm, PA, light gray, for electrical conduit Ø 25-28 mm, 2153130
Order No.: 46P1076
EAN: 4012195881056
MPN:
2153130
M-Quick 25-28LGR
Unit Price (€ / pc.)
0.5831 € *
Standard delivery time from the manufacturer is: 1 Week

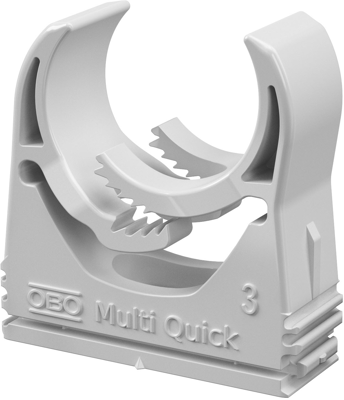

Multi-Quick clip, M-Quick 25-28LGR, OBO Bettermann
Flush-mounted clip to accept metric and PG pipes and Quick Pipe electrical installation pipes. Flexible clamping range of several millimetres. Universal fastening options on walls and ceilings and usable in a profile rail, both in indoor and protected outdoor areas.
Features
- Simple fastening
- Secure locking
- Radial arrangement
- Simplified storage
- Universally applicable
- Fastening in rail type CL2008

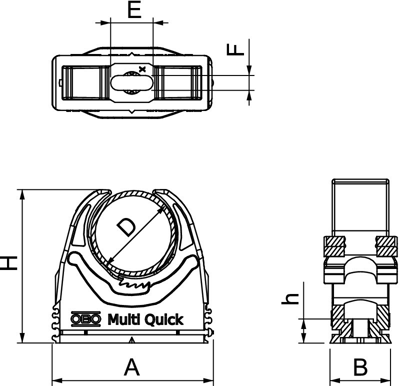

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 46 mm | |
| Colour | light gray | |
| Material | PA | |
| Mounting hole size | 4.1 mm | |
| Width | 15.5 mm | |
| Suitable for | electrical conduit Ø 25-28 mm | |
| Length | 43 mm | |
| Product type | pipe clamp |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
