2149040 | OBO Bettermann

Pipe clamp, (L x W x H) 87.3 x 20 x 74.5 mm, mounting Ø 6 mm, PP, light gray, for electrical conduit Ø 63 mm, 2149040

Order No.: 46P1103
EAN: 4012195588252
MPN:
2149040
2955 M63

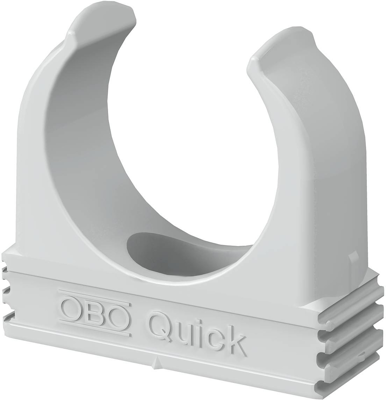

2149040 OBO Bettermann Cable Management Accessories Image 1
2149040 OBO Bettermann Cable Management Accessories Image 2
Image may differ
Unit Price (€ / pc.)
1.2138 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
24.28 € *
Price list
Quantity
Price per unit*
20 pcs.
1.2138 €
60 pcs.
1.1186 €
100 pcs.
1.0591 €
500 pcs.
0.9520 €
*incl. VAT plus shipping costs
Subject to prior sale

Quick clip, 2955 M63, OBO Bettermann

Flush-mounted clip to accept metric steel armoured pipes and heavy-duty insulating pipes, as well as Quick Pipe electrical installation pipes. Universal fastening options on walls and ceilings, both in indoor and protected outdoor areas. With slot for side alignment during mounting with wood screw or knock-in anchor. Toolless pipe mounting.

Recommended fastening spacing 50–60 cm, for max. extraction values F at a room temperature of 20 °C.

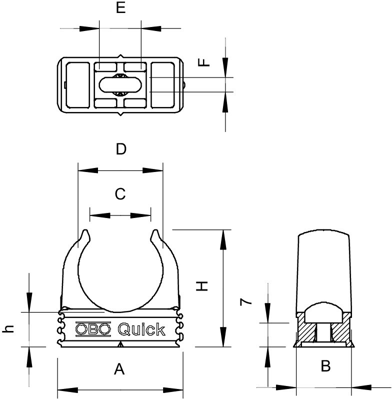

Technical specifications
Colour light gray
Material PP
Mounting hole size 6 mm
Product type pipe clamp
Length 87.3 mm
Height 74.5 mm
Suitable for electrical conduit Ø 63 mm
Width 20 mm
Logistics
Customs tariff number 39269097
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
