2146061 | OBO Bettermann

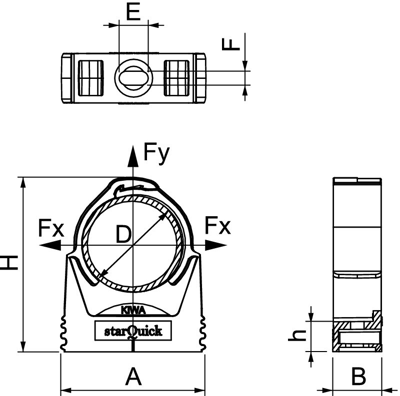

Pipe clamp, (L x W x H) 29 x 17 x 34.5 mm, mounting Ø 4.5 mm, PA, light gray, for electrical conduit Ø 11.5-15 mm, 2146061

Order No.: 46P1079
EAN: 4012195595410
MPN:
2146061
SQ-12 LGR
2146061 OBO Bettermann Cable Management Accessories Image 1
2146061 OBO Bettermann Cable Management Accessories Image 2
Image may differ
Unit Price (€ / pc.)
1.5589 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
155.89 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
1.5589 €

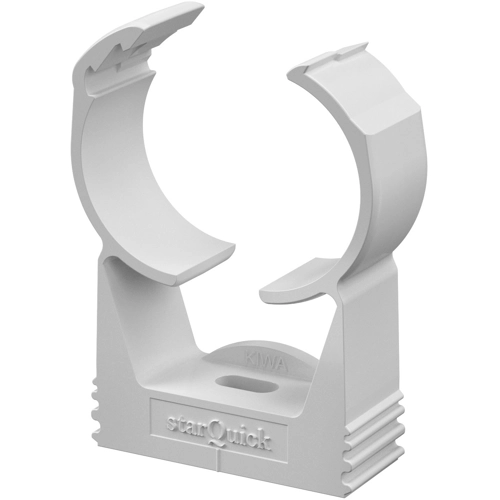

starQuick clip, SQ-12 LGR, OBO Bettermann

Highly stable clip to accept plastic and metal electrical and sanitary pipes, as well as the Quick Pipe electrical installation pipe. Universal fastening options on walls, ceilings and on the exterior of steel structures, both indoors and outdoors. Climate conditions have no chance: the starQuick clip is made from UV weather-resistant polyamide. Flexible clamping range of several millimetres.

Mounting is amazingly fast and uncomplicated, without the use of tools. Can be combined with double bracket and mounted on profile rails for variable spacings and numbers of clips. starQuick is reliable and can support heavy loads. A patented safety system guarantees that the pipes stay where they are. The pipe is secure in the all around closed clip.

Technical specifications
Colour light gray
Material PA
Mounting hole size 4.5 mm
Product type pipe clamp
Length 29 mm
Height 34.5 mm
Suitable for electrical conduit Ø 11.5-15 mm
Width 17 mm
Logistics
Customs tariff number 39269097
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
