2090090 | OBO Bettermann

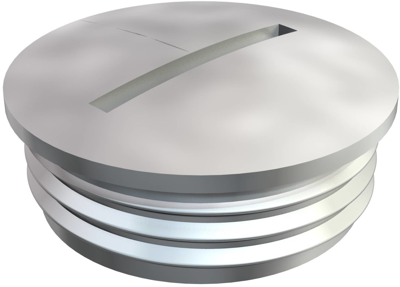

Locking screw, PG9, IP68, silver, 2090090

Order No.: 46P1696
EAN: 4012195193999
MPN:
2090090
168 MS PG 9
2090090 OBO Bettermann Cable Glands Image 1
2090090 OBO Bettermann Cable Glands Image 2
Image may differ
Unit Price (€ / pc.)
1.5232 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
152.32 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
1.5232 €

Screw plug, 2090090, OBO Bettermann

Screw plug N in accordance with DIN 46320, with PG thread to DIN 40430. In conjunction with sealing ring, types 107, 170 or 171, protection rating IP68 (5 bar/1 hr). Sealing ring not contained in the scope of delivery.

Technical specifications
Colour silver
Degree of protection (IP) IP68
Length 6 mm
Product type locking screw
Material brass, nickel-plated
Thread size PG9
Logistics
Customs tariff number 74153900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
