2086159 | OBO Bettermann
Cable gland, M75, 90 mm, Clamping range 53 to 60 mm, IP68, silver gray, 2086159
Order No.: 46P1230
EAN: 4012195858263
MPN:
2086159
V-TEC VM LM75MS2
Unit Price (€ / pc.)
379.134 € *
Standard delivery time from the manufacturer is: 8 Weeks

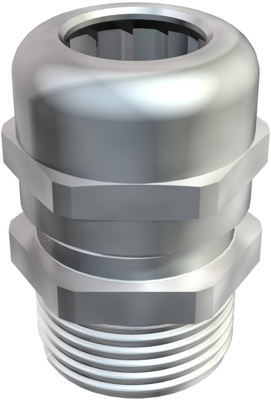

Cable gland, 2086159, OBO Bettermann
With metric connecting thread to IEC 423, robust cap-nut cable gland with large sealing area. Strain relief, wringing protection and tightness over the whole clamping area for thicker housing wall thicknesses in conjunction with locknuts. Neoprene sealing ring, polyamide terminal insert with pre-mounted sealing ring on connection thread, VDE-tested to DIN EN 50262, protection rating IP 68 at 5 bar for 1 hr. With long connection thread.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | M75 | |
| min. clamping range | 53 mm | |
| max. clamping range | 60 mm | |
| spanner size | 90 mm | |
| Length | 42 mm | |
| Degree of protection (IP) | IP68 | |
| Material | brass, nickel-plated | |
| Colour | silver gray | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74153900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
