2086135 | OBO Bettermann

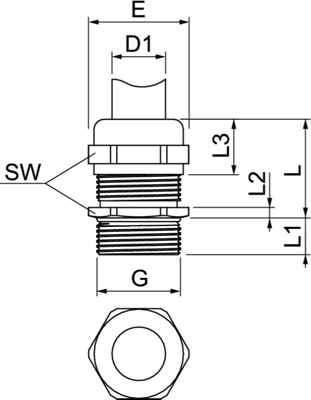

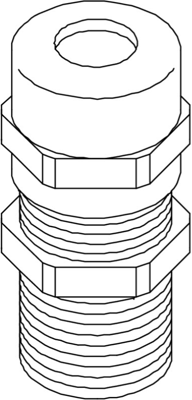

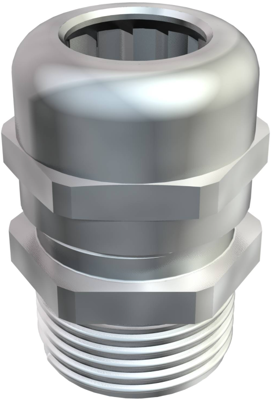

Cable gland, M32, 34 mm, Clamping range 14 to 21 mm, IP68, silver gray, 2086135
Order No.: 46P1225
EAN: 4012195810858
MPN:
2086135
V-TEC VM LM32 MS
Unit Price (€ / pc.)
13.8992 € *
Standard delivery time from the manufacturer is: 1 Week
Cable gland, 2086135, OBO Bettermann
With metric connecting thread to IEC 423, robust cap-nut cable gland with large sealing area. Strain relief, wringing protection and tightness over the whole clamping area for thicker housing wall thicknesses in conjunction with locknuts. Neoprene sealing ring, polyamide terminal insert with pre-mounted sealing ring on connection thread, VDE-tested to DIN EN 50262, protection rating IP 68 at 5 bar for 1 hr. With long connection thread.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | silver gray | |
| spanner size | 34 mm | |
| Material | brass, nickel-plated | |
| Product type | cable gland | |
| Degree of protection (IP) | IP68 | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -20 °C | |
| Thread size | M32 | |
| min. clamping range | 14 mm | |
| Length | 30 mm | |
| max. clamping range | 21 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74153900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
