2086129 | OBO Bettermann

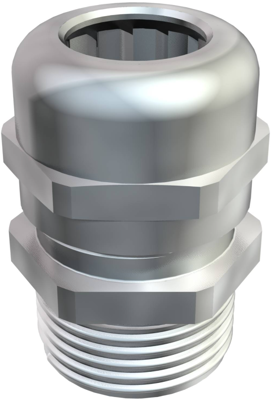

Cable gland, M25, 27 mm, Clamping range 11 to 16 mm, IP68, silver gray, 2086129
Order No.: 46P1224
EAN: 4012195810735
MPN:
2086129
V-TEC VM LM25 MS
Unit Price (€ / pc.)
9.3534 € *
Standard delivery time from the manufacturer is: 1 Week
Cable gland, 2086129, OBO Bettermann
With metric connecting thread to IEC 423, robust cap-nut cable gland with large sealing area. Strain relief, wringing protection and tightness over the whole clamping area for thicker housing wall thicknesses in conjunction with locknuts. Neoprene sealing ring, polyamide terminal insert with pre-mounted sealing ring on connection thread, VDE-tested to DIN EN 50262, protection rating IP 68 at 5 bar for 1 hr. With long connection thread.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP68 | |
| Material | brass, nickel-plated | |
| max. operating temperature | 100 °C | |
| spanner size | 27 mm | |
| min. clamping range | 11 mm | |
| max. clamping range | 16 mm | |
| Thread size | M25 | |
| Product type | cable gland | |
| min. operating temperature | -20 °C | |
| Colour | silver gray | |
| Length | 29.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74153900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
