2086117 | OBO Bettermann

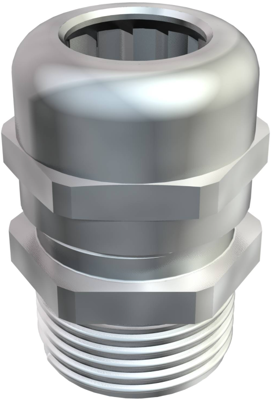

Cable gland, M16, 17 mm, Clamping range 5 to 9 mm, IP68, silver gray, 2086117
Order No.: 46P1222
EAN: 4012195810377
MPN:
2086117
V-TEC VM LM16 MS
Unit Price (€ / pc.)
4.2245 € *
Standard delivery time from the manufacturer is: 1 Week
Cable gland, 2086117, OBO Bettermann
With metric connecting thread to IEC 423, robust cap-nut cable gland with large sealing area. Strain relief, wringing protection and tightness over the whole clamping area for thicker housing wall thicknesses in conjunction with locknuts. Neoprene sealing ring, polyamide terminal insert with pre-mounted sealing ring on connection thread, VDE-tested to DIN EN 50262, protection rating IP 68 at 5 bar for 1 hr. With long connection thread.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. clamping range | 5 mm | |
| Colour | silver gray | |
| Product type | cable gland | |
| max. clamping range | 9 mm | |
| Degree of protection (IP) | IP68 | |
| max. operating temperature | 100 °C | |
| spanner size | 17 mm | |
| Material | brass, nickel-plated | |
| Thread size | M16 | |
| min. operating temperature | -20 °C | |
| Length | 24 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74153900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
