2085836 | OBO Bettermann

Cable gland, PG48, 64 mm, Clamping range 30 to 44 mm, IP68, silver, 2085836

Order No.: 46P1168
EAN: 4012195841210
MPN:
2085836
V-TEC L PG48 MS

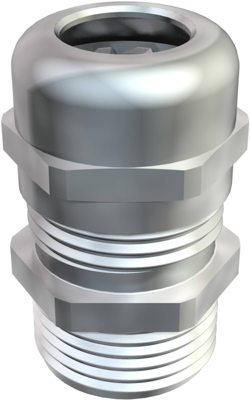

2085836 OBO Bettermann Cable Glands Image 1

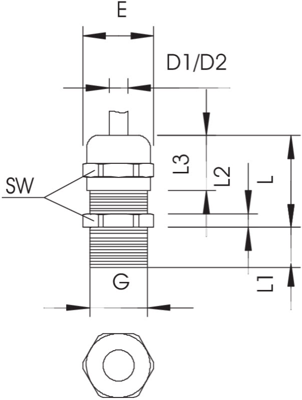

2085836 OBO Bettermann Cable Glands Image 2

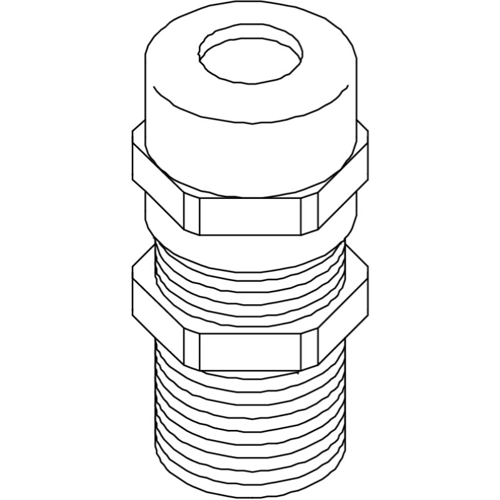

2085836 OBO Bettermann Cable Glands Image 3
Image may differ
Unit Price (€ / pc.)
174.9538 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
874.77 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
174.9538 €

Cable gland, 2085836, OBO Bettermann

Cable gland of cap-nut design with large sealing area, strain relief and torsion protection for high sealing demands with long Pg connection. Thread to DIN 40430, for thicker housing wall thicknesses in connection with locknut.

Features

  • Polyamide terminal insert
  • Sealing ring of chloroprene/nitrile rubber
  • O ring pre-mounted on connection thread
  • With long connection thread
Technical specifications
Colour silver
Degree of protection (IP) IP68
max. clamping range 44 mm
Length 52.5 mm
Product type cable gland
min. operating temperature -20 °C
Material brass, nickel-plated
spanner size 64 mm
max. operating temperature 100 °C
min. clamping range 30 mm
Thread size PG48
Logistics
Customs tariff number 74153900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
