2085798 | OBO Bettermann

Cable gland, PG29, 40 mm, Clamping range 14 to 25 mm, IP68, silver, 2085798

Order No.: 46P1167
EAN: 4012195841098
MPN:
2085798
V-TEC L PG29 MS

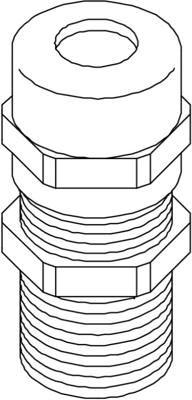

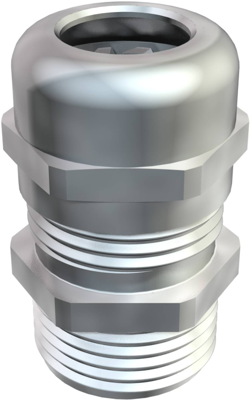

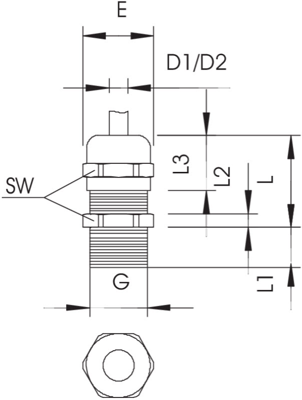

2085798 OBO Bettermann Cable Glands Image 1
2085798 OBO Bettermann Cable Glands Image 2
2085798 OBO Bettermann Cable Glands Image 3
Image may differ
Unit Price (€ / pc.)
38.3418 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
383.42 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
38.3418 €

Cable gland, 2085798, OBO Bettermann

Cable gland of cap-nut design with large sealing area, strain relief and torsion protection for high sealing demands with long Pg connection. Thread to DIN 40430, for thicker housing wall thicknesses in connection with locknut.

Features

  • Polyamide terminal insert
  • Sealing ring of chloroprene/nitrile rubber
  • O ring pre-mounted on connection thread
  • With long connection thread
Technical specifications
Colour silver
Degree of protection (IP) IP68
max. clamping range 25 mm
Length 39 mm
Product type cable gland
min. operating temperature -20 °C
Material brass, nickel-plated
spanner size 40 mm
max. operating temperature 100 °C
min. clamping range 14 mm
Thread size PG29
Logistics
Customs tariff number 74153900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
