2085763 | OBO Bettermann

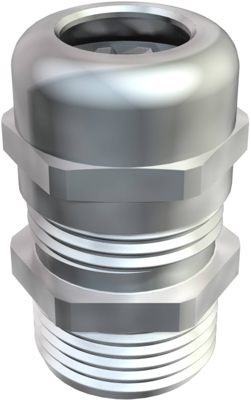

Cable gland, PG16, 24 mm, Clamping range 7 to 14 mm, IP68, silver, 2085763
Order No.: 46P1165
EAN: 4012195840978
MPN:
2085763
V-TEC L PG16 MS
Unit Price (€ / pc.)
14.3752 € *
Standard delivery time from the manufacturer is: 4 Weeks
Cable gland, 2085763, OBO Bettermann
Cable gland of cap-nut design with large sealing area, strain relief and torsion protection for high sealing demands with long Pg connection. Thread to DIN 40430, for thicker housing wall thicknesses in connection with locknut.
Features
- Polyamide terminal insert
- Sealing ring of chloroprene/nitrile rubber
- O ring pre-mounted on connection thread
- With long connection thread
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP68 | |
| Material | brass, nickel-plated | |
| max. operating temperature | 100 °C | |
| spanner size | 24 mm | |
| min. clamping range | 7 mm | |
| max. clamping range | 14 mm | |
| Thread size | PG16 | |
| Product type | cable gland | |
| min. operating temperature | -20 °C | |
| Colour | silver | |
| Length | 27 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74153900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
