2085755 | OBO Bettermann

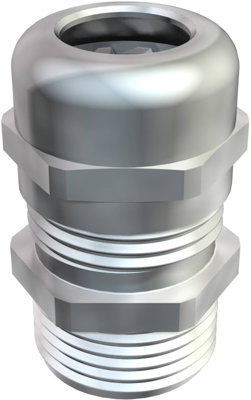

Cable gland, PG13.5, 22 mm, Clamping range 5 to 12 mm, IP68, silver, 2085755
Order No.: 46P1164
EAN: 4012195840916
MPN:
2085755
V-TEC L PG13 MS
Unit Price (€ / pc.)
13.8992 € *
Standard delivery time from the manufacturer is: 8 Weeks
Cable gland, 2085755, OBO Bettermann
Cable gland of cap-nut design with large sealing area, strain relief and torsion protection for high sealing demands with long Pg connection. Thread to DIN 40430, for thicker housing wall thicknesses in connection with locknut.
Features
- Polyamide terminal insert
- Sealing ring of chloroprene/nitrile rubber
- O ring pre-mounted on connection thread
- With long connection thread
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | silver | |
| spanner size | 22 mm | |
| Material | brass, nickel-plated | |
| Product type | cable gland | |
| Degree of protection (IP) | IP68 | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -20 °C | |
| Thread size | PG13.5 | |
| min. clamping range | 5 mm | |
| Length | 25 mm | |
| max. clamping range | 12 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74153900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
