2082632 | OBO Bettermann
Cable gland, PG48, 60/64 mm, Clamping range 36 to 47 mm, IP54, silver, 2082632
Order No.: 46P1137
EAN: 4012195800835
MPN:
2082632
162 MS PG48
Unit Price (€ / pc.)
56.5964 € *
Standard delivery time from the manufacturer is: 6 Weeks

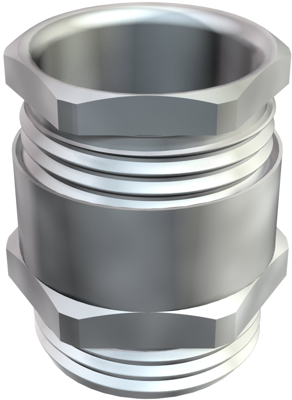

Cable gland, 162 MS PG48, OBO Bettermann
Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with Pg connection thread to DIN 40430. Pressure rings made of electrogalvanised and transparently passivated steel with NR/SBR sealing ring.
Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | silver | |
| spanner size | 60/64 mm | |
| Material | brass, nickel-plated | |
| Product type | cable gland | |
| Degree of protection (IP) | IP54 | |
| max. operating temperature | 65 °C | |
| min. operating temperature | -20 °C | |
| Thread size | PG48 | |
| min. clamping range | 36 mm | |
| Length | 44 mm | |
| max. clamping range | 47 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74153900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
