2082624 | OBO Bettermann
Cable gland, PG42, 54/57 mm, Clamping range 30 to 42 mm, IP54, silver, 2082624
Order No.: 46P1136
EAN: 4012195878353
MPN:
2082624
162 MS PG42
Unit Price (€ / pc.)
40.936 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

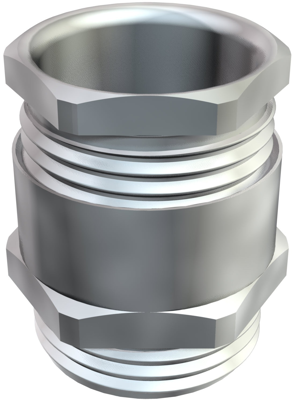

Cable gland, 162 MS PG42, OBO Bettermann
Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with Pg connection thread to DIN 40430. Pressure rings made of electrogalvanised and transparently passivated steel with NR/SBR sealing ring.
Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.
Technical specifications
| Colour | silver | |
| Degree of protection (IP) | IP54 | |
| max. clamping range | 42 mm | |
| Length | 33 mm | |
| Product type | cable gland | |
| min. operating temperature | -20 °C | |
| Material | brass, nickel-plated | |
| spanner size | 54/57 mm | |
| max. operating temperature | 65 °C | |
| min. clamping range | 30 mm | |
| Thread size | PG42 |
Download
Logistics
| Customs tariff number | 74153900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
