2082616 | OBO Bettermann

Cable gland, PG36, 47/50 mm, Clamping range 24 to 37 mm, IP54, silver, 2082616

Order No.: 46P1135
EAN: 4012195187875
MPN:
2082616
162 MS PG36

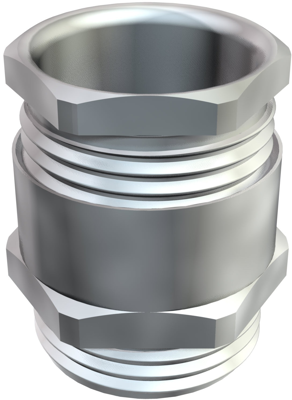

2082616 OBO Bettermann Cable Glands Image 1
2082616 OBO Bettermann Cable Glands Image 2
Image may differ
Unit Price (€ / pc.)
18.921 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
189.21 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
18.921 €

Cable gland, 162 MS PG36, OBO Bettermann

Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with Pg connection thread to DIN 40430. Pressure rings made of electrogalvanised and transparently passivated steel with NR/SBR sealing ring.

Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.

Technical specifications
Colour silver
Degree of protection (IP) IP54
max. clamping range 37 mm
Length 29 mm
Product type cable gland
Material brass, nickel-plated
spanner size 47/50 mm
min. clamping range 24 mm
Thread size PG36
Logistics
Customs tariff number 74153900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
