2082527 | OBO Bettermann
Cable gland, PG13.5, 20/22 mm, Clamping range 7.5 to 13.5 mm, IP54, silver, 2082527
Order No.: 46P1131
EAN: 4012195187639
MPN:
2082527
162 MS PG13.5
Unit Price (€ / pc.)
3.1297 € *
Standard delivery time from the manufacturer is: 6 Weeks

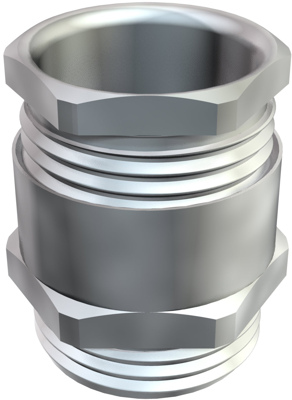

Cable gland, 162 MS PG13.5, OBO Bettermann
Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with Pg connection thread to DIN 40430. Pressure rings made of electrogalvanised and transparently passivated steel with NR/SBR sealing ring.
Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP54 | |
| Material | brass, nickel-plated | |
| spanner size | 20/22 mm | |
| min. clamping range | 7.5 mm | |
| max. clamping range | 13.5 mm | |
| Thread size | PG13.5 | |
| Product type | cable gland | |
| Colour | silver | |
| Length | 18 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74153900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
